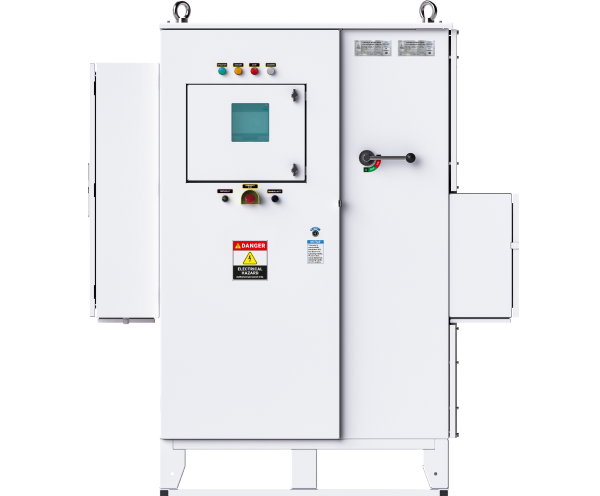

Triol AK06 Phase Shifting

Place an order
variable speed drive, variable speed ac motor, esp pump

Distinctive benefits

20°С … +60°С

Operating temperature range



Phase shifting autotransformer


About product

IEEE519 standard

Variable Speed Drive AK06 line PS is another complete solution for the efficient control of installations with both induction and permanent magnet motors, as well as for fulfilling the requirements of IEEE519 standard.

Integrated phase-shifting autotransformer,

PS line drives have an integrated phase-shifting autotransformer, which, in combination with 24-pulse rectifier, provides 5% level of harmonic distortion to the input network in the load range from 25% to 100% in accordance with the IEEE 519 standard, and allows operation at frequency supply deviation ±5%.


Parameter Value
Power supply, V
  • 3×380 ± 15% / 3×480 (-15% … + 10%)
  • 50% continuously with reduced output power
  • 65% up to 500 ms (with a decrease of output power)
Input Frequency, Hz 50±1 Hz and/or 60±1 Hz
Rated output current, A 100 – 2000
Overcurrent characteristics 120% of rated value for 60 sec
Change of frequency task increment 0,1 Hz
Efficiency 96 %
Passive filter efficiency >98 %
Level of current distortion in the input network THDi,% <5% in the load range from 25%* to 100%   * operation in the extended load range is optional when specified in the order
DC bus choke Built-in
Sine filter Built-in
Capacitor unit (for voltage sags) Option, outdoor


Braking IGBT Option, built-in
Braking resistor Option, outdoor
Electric meter Option, built-in
GPRS router Option, built-in
PID mode YES
  • UMKA03 controller with a 7-inch monochrome screen, push-button control
  • UMKA07 controller with LCD-TFT 7 inch display, push-button control (touch screen optional)
  • Integration of third-party controller
Output frequency
  • 1.5 – 80 Hz, in induction motor control mode
  • 1.5 – 200 Hz, in permanent magnet motor control mode
  • 1.5 – 600 Hz, in high-speed PMM control mode


PWM frequency up to 8 kHz depending on VSD type
Speed maintenance accuracy (static)  +/- 10% of rated speed in open-loop system
Control type
  • vector control in an open-loop system without speed feedback (for PMM)
  • scalar control: based on the characteristic voltage / frequency U / F (for induction motors)


Light alarm “Work”, “Waiting”, “Stop”
Operator Control Voltage Option:

  • 10 V DC, +/- 2% current not more than 30 mA
  • 24 V, 300 mA
  • 110/220 V, 10A for connecting of third-party consumers
Number of AI 2 by default, optional extension +8
AI type programmable 4..20 mA, 0..5 mA, 0..10 V (frequency reference / multifunction analog input)
Number of DIN 2 by default, optional extension +4 or more
DIN type 24 V, input resistance: 4 kOhm
Number of analog outputs Option, 4 or more programmable 4..20 mA, 0..5 mA, 0..10 V
Number of Relay Outputs Option, 8
Acceleration and deceleration rates
  • linear, from 0.1 Hz/s
  • program mode with adjustable time of reaching given frequency
Insulation Galvanic isolation between power and user circuits
Insulation resistance > 5 MOhm
Protection type
  • Overcurrent protection
  • Power switched temperature (IGBT)
  • Max. and min. voltage in the DC link
Communication port Modbus
Physical interface
  • 2-wire RS-485/232 for Modbus by default
  • Ethernet (optional) – for communication with ACS /automated control system/
  • wire RS-485/232 for Modbus – for communication with a surface downhole measuring system
Frame Transmission Modbus RTU
up to 115200 bps
Enclosure protection NEMA4, NEMA4X
Material of enclosure carbon steel, stainless steel
Operating temperature -20°С … +60°С (-60°С optional)
Relative humidity 100 %
Cooling type Air forced
