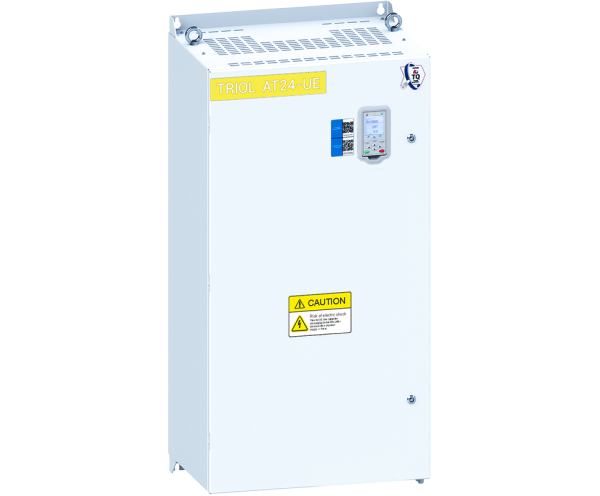

TRIOL AT24 line UE

Place an order
abb vfd, danfoss vfd, yaskawa vfd, delta vfd, eaton vfd, toshiba vfd

Distinctive benefits

Removable graphic terminal

Operation without control terminal

Built-in

Input fuses and DC link

Contol type

Vector sensor (close-loop) and sensorless (open-loop) control

Encoders

3 different types of encoders supported

Motor parameters

Auto-tuning of motor parameters with motor rotation and without it

Multi-tasking

Motor group control

Remote control terminal

Transient graphs

Macros

Quick start and the ability to exchange settings between VFDs

Control system

Wide variety of expandable units for control system

About product

Long service life

Variable Frequency Drive AT24 line UE is a sustainable power frequency drive. Distinctive feature of Triol AT24 VFD line UE is the implementation of film capacitors in the DC-link that provides a long service life and simplifies maintenance. Triol AT24 VFD line UE is optionally equipped with a removable wireless control graphic terminal with induction supply. It is possible to control several VFDs. Triol AT24 VFD line UE is designed to control pumps, HVAC systems, exhausters, compressors, conveyors, crushers, mixers, grinders, mills. Various additional units for VFD control system extend abilities of process control.

WIde range of implementation

Setting up and controlling of Triol AT24 VFD line UE is easy due to the use of: Wi-Fi adapter with step-by-step Triol Wizard via smartphone, Service software Triol Drive for PC, Remote control terminal with transient graphs

Specifications

Input
Input voltage, V 3х380 / 3х480/ 3×690 (-15 % …+10 %)
Input frequency, Hz 50 / 60 (-5 %…+5 %)
Output
Output current, A 102 … 800
Output frequency, Hz 0.5…400
Frequency resolution, Hz 0.1
Acceleration / deceleration time, s 1 …4000
Overcurrent characteristics 150 % of rated value for 60 sec
Efficiency, % >97
Motor control
Control methods V/f (volts-per-hertz) (5 reference point) sensorless vector control (open-loop) sensor vector control (close-loop)
PWM frequency, kHz 2…10
Speed range 1:100 in open-loop system 1:1000 in closed-loop system
Speed accuracy (static) ±10% of motor nominal slip in open-loop system ±0.1 % of rated speed in close-loop system
Torque accuracy ±10% in open-loop system ± 5 % in close-loop system
Braking By frequency


Coasting

Dynamic

Acceleration / deceleration types S-curve, linear (3 reference points)
Interface
Terminal Removable graphic terminal with induction power
Light alarm “Ready”; “Run”; “Control channel”, “Rotation”
Push buttons “Start”; “Stop”; “Fast access “
Control signals
Customer supply 10 V DC, up to 30 mA 24 V DC, up to 150 mA
Number of discrete inputs 9
Discrete inputs 1 Dl Emergency Stop 8 Dl programmable
Discrete inputs type 24 V
Sensor input 1 PTC sensor (switching at a resistance of 3 kOhm / 1.8)
Number of relay outputs 4
Relay outputs type 250 V250 V, 3.5 A
Number of analog inputs 2
Analog inputs Programmable 0…10 V / 0…5 mA / 4…20 mA
Number of analog outputs 1
Analog outputs Programmable 0…10 V / 0…5 mA / 4…20 mA
Communication
Physical Interface 2 wire RS-485 for Modbus
Communication protocols Modbus RTU
Frame transmission 115200 bps by default 1200 -250000 bps
Data format 8 bits, 1 stop bit, no parity
Number of addresses 1…255 for Modbus
Access Slave
Protection
Supply protections Phase loss, phase sequence fault
Motor protections Overcurrent


Overload

Underload

Phase loss

Current unbalance

Encoder open circuit

Brake resistor open circuit

VFD protections Overload, Overheating, DC-link undervoltage, DC-link overvoltage, Power switch failure
Insulation Galvanic isolation between power and user circuits
Insulation resistance >1 MQ
Configuration
Input fuses (characteristic gG) Built-in
DC-choke Built-in
Braking IGBT-chopper Option, built-in
Input EMC filter (C2) Option, built-in
Quick fuses (characteristic aR) Option, built-in
Optional equipment
Input line choke Option, outdoor, by request
Input passive harmonic filter Option, outdoor, by request
Braking resistors Option, outdoor, by request
Output sine filter Option, outdoor, by request
Output dV/dt filter Option, outdoor, by request
Construction
Enclosure IP21
Cabinet material Steel
Cooling Forced air
Noise level, @ 1 m, dB(A) <75
Installation Wall mounting
Maintenance One-side
Cable entry Bottom
Operating conditions
Operating conditions Indoor, no caustic and volatile air, no dust
Operating temperature -10…+40 °C (-10…+104 F)
Storage temperature -40…+50 °C (-40…+122 F)
Relative humidity, % from 5 to 90 non condensing
Altitude, m up to 1000 m – rated power above 1000 m – with reduced power

Functions

  • Start /stop/reverse of motor with set acceleration and deceleration rates
  • Motor speed and torque control
  • Auto-tuning of motor parameters (with rotation and without)
  • PID-controller
  • 2-wire control
  • 3-wire control
  • Automatic restart
  • “Catch on the fly” mode
  • Motor group control
  • Operation by calendar
  • Energy and electricity meters
  • Encoders supported – incremental, absolute, sine/cosine
  • Accelerated passing of resonant frequencies (3 ranges)
  • Recording the last 32 reasons of failures
