TRIOL TM01-15

Place an order
submersible pump, oil pressure sensor, largest oil producers

Distinctive benefits

Investment Savings

Cost savings during commissioning and well operation

Increased production through quality and timely solutions

Increased service life of submersible equipment

Ensuring the safety of personnel at wells site

About product

Advantageous and reliable solution

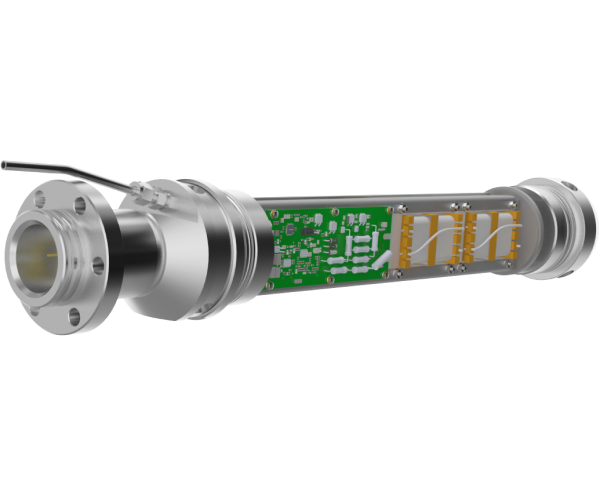

Downhole Measuring System Triol TM01-15 an advantageous and reliable solution used in different industrial systems for controlling the pump discharge and pressure, and the temperature where it is necessary to collect, process, display and transmit actual parameters of downhole equipment, downhole parameters, when the fluid temperature is up to 150 °C (302°F), the temperature of the liquid on the pump discharge is up to 250 °C (482°F) and equipment zone of suspension pressure is up to 40 MPa (5800psi).

Distinctive benefits of Downhole Measuring System Triol TM01–15:

Investment Savings, Cost savings during commissioning and well operation, Increased production through quality and timely solutions, Increased service life of submersible equipment, Ensuring the safety of personnel at wells site.

Displaying and processing of

  • pump discharge pressure
  • pump intake pressure
  • pump discharge temperature
  • submersible motor oil temperature or the temperature of the motor stator winding
  • ambient temperature
  • ESM vibration acceleration in the X, Y and Z axis
  • insulation resistance in the circuit "Step-up transformer - submersible cable - ESM"

Specifications

Key parameters

Ambient temperature
  • Up to + 125 °С (257 °F)  – constantly
  • Up to +150 °С (302°F) – up to 6 months totally
ESM oil temperature From 0 to +200/250 °С (from +32 to +392/482 °F) ±2°С, (±3,6°F), resolution 0,01°С (0,1°F)
Pump intake pressure 0-40 MPa (0-5800 psi) ±0,2 MPa (±30 psi), resolution 0,001 MPa (0,1 psi)
Axis vibration x, y, z 0-30 m/s² ±5 %, resolution 0,1 m/s²
Insulation resistance "Step-up transformer – ESM power line" 0-1000 kΩ (±5 %), resolution 1 kΩ
1000-10000 kΩ (±10 %), resolution 1 kΩ
Operation mode (duration) Extended
Data update time 30 s
Controller communication protocol RS-232, RS-485 Modbus RTU
Communication protocol Step-up transformer / Submersible unit Closed
Communication protocol Surface unit / VSD Triol / Transfer


Additional Options

Options

Digital Module TM01 16 digital inputs /8 digital outputs
Analog Module TM01 8 digital outputs
Adam TM01 Adapter RS485/422/232 Ethernet
Triol High-Voltage Choke IP20 230х460х142mm, 24 kg, IP20, from -40 to +60°С (from -40 °F to +140 °F)
Triol High-Voltage Choke IP56 230х460х142mm, 24 kg, IP20, from -40 to +60°С (from -40 °F to +140 °F)
Triol Test unit TM01 454х324х171mm, 11 kg, IP67, from -40 to +55°С (from -40 °F to +131 °F), 4h
Triol Test unit pressure TM01 454х324х171mm, 9 kg, IP67, from -20 to +60°С (from -4 °F to +140 °F)
SCP Modem Modem type depends on the region of implementation
