TRIOL TM01-20
Place an order
Distinctive benefits
Investment Savings
Cost savings during commissioning and well operation
Increased production through quality and timely solutions
Increased service life of submersible equipment
Ensuring the safety of personnel at wells site
About product
High quality, reliable and long on performance solution

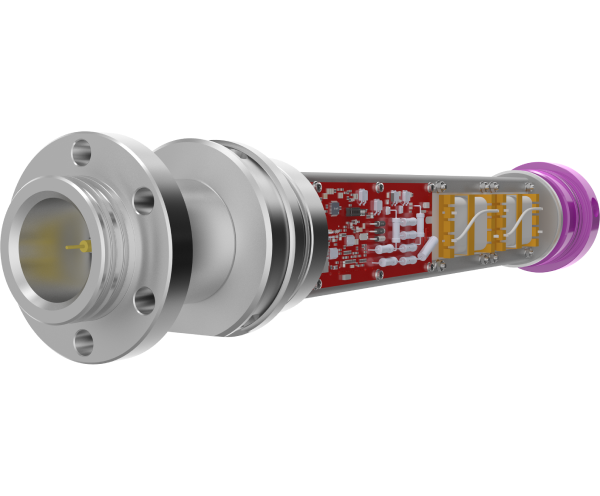

Downhole Measuring System Triol TM01-20 is a premium, high quality, reliable and long on performance solution for the collecting, rapid processing, convenient display, fast and reliable transmission downhole equipment actual parameters and sensor values of surface wellhead equipment, at a fluid temperature of 150 °C (302°F) and in the equipment pressure suspension zone up to 40 MPa (5800psi).
Distinctive benefits of Downhole Measuring System Triol TM01–20:
Investment Savings, Cost savings during commissioning and well operation, Increased production through quality and timely solutions, Increased service life of submersible equipment, Ensuring the safety of personnel at wells site.
Displaying and processing of
- pump intake pressure
- pump discharge temperature
- submersible motor oil temperature or the temperature of the motor stator winding
- ESM vibration acceleration in the X, Y and Z axis
- insulation resistance in the circuit “Step-up transformer – submersible cable – ESM”
Specifications
|
Key parameters |
|
| Ambient temperature | Up to +150 °С ±1°С (32-302°F ±1,8°F) constantly, resolution 0,01°С (0,1°F) |
| ESM oil temperature / ESM stator winding | From 0 to +200/250 °С (from +32 to +392/482 °F) ±2°С, (±3,6°F), resolution 0,01°С (0,1°F) |
| Pump intake pressure | 0-40 MPa (0-5800 psi) ±0,05 MPa (±6 psi), resolution 0,001 MPa (0,1 psi) |
| Axis vibration x, y, z |
0-30 m/s² (0-3,06 g) ±5 % resolution 0,1 m/s² (0.001 g) |
| Insulation resistance "Step-up transformer – ESM power line" | 0-1000 kΩ (±5 %)
resolution 1 kΩ / 0-10 mA ±5%, (0,001 mA) |
| Insulation resistance "Step-up transformer – ESM power line" |
1000-10000 kΩ (±10 %) resolution 1 kΩ |
| Operation mode (duration) | Extended |
| Data update time | 30 s |
| Controller communication protocol | RS-232, RS-485 Modbus RTU |
| Communication protocol Step-up transformer / Submersible unit | Closed / Transfer |
| Communication protocol Surface unit / VSD | Triol / Transfer |
Additional Options
|
Options |
|
| Digital Module TM01 | 16 digital inputs / 8 digital outputs |
| Analog Module TM01 | 8 digital outputs |
| Adam TM01 | Adapter RS485/422/232 Ethernet |
| Triol High-Voltage Choke IP20 | 230х460х142mm, 24 kg, IP20, from -40 to +60°С (from -40 °F to +140 °F) |
| Triol High-Voltage Choke IP56 | 230х460х142mm, 24 kg, IP20, from -40 to +60°С (from -40 °F to +140 °F) |
| Triol Test unit TM01 | 454х324х171mm, 11 kg, IP67, from -40 to +55°С (from -40 °F to +131 °F), 4h |
| Triol Test unit pressure TM01 | 454х324х171mm, 9 kg, IP67, from -20 to +60°С (from -4 °F to +140 °F) |
| SCP Modem | Modem type depends on the region of implementation |
