Downhole Measuring System TM01: product line extension

Downhole measuring systems: what's on the market?

Oil production has always been a process that required high accuracy and technologically sharp methods to get quality results. Through the years of technology development, manufacturers all over the globe advanced their solutions and enhanced the equipment.

Nowadays, oil field companies have a variety of specially designed units at their disposal. Sometimes, it gets hard for manufacturers to stand out on the global market. Keeping up with modern technology dynamics can be pretty rough, but Triol Corporation finds it positively challenging to create something that the technological world hasn't seen before. That's our goal - to be unique and competitive.

Following that exact goal, our experts made a decision to extend Downhole Measuring System Triol TM01 product line and give new possibilities for our Customers to implement and improve the production process.

Downhole Measuring System Triol TM01: why implement? Downhole Measuring System Triol TM01 is designed for collecting, processing, displaying, transmitting and monitoring the required set of actual parameters of wells equipment.

Due to efficient algorithms for sensors status requesting and data operation management system, TM01 system provides continuous monitoring of equipment status and allows you to make timely decisions to optimize the performance indicators of the controlled equipment. To give our Customers a wide choice of product modifications according to their need, we extend Downhole Measuring System Triol TM01 product line where each line is a unique and efficient solution.

You're welcome to check a brief lineup below:

ТМ01-05 150°С (302°F), 40MPa (5800psi), Рump intake ±2atm (±0.2 MPa, ±30 psi), Рump discharge ±2atm (±0.2 MPa, ±30 psi), ESM oil temperature ±2°С (±3.6°F), Ambient temperature ±2°С (±3.6°F), stainless steel/ carbon steel. / phosphating; surface unit IP20 without display / IP56 with display

ТМ01-10 150°С (302°F), 40MPa (5800psi), Рump intake ±2аtм (±0.2 MPa, ±30 psi), ESM oil temperature ±2°С (±3.6°F), Ambient temperature ±2°С (±3.6°F), stainless steel/ carbon steel. / phosphating; surface unit IP20 without display / IP56 with display

ТМ01-11 For low-frequency motors from 5Hz), 150°С (302°F), 40МPa (5800psi), Рump intake ±2atm (±0.2 MPa, ±30 psi), ESM oil temperature ±2°С (±3.6°F), Ambient temperature ±2°С (±3.6°F), stainless steel/ carbon steel / phosphating; surface unit IP20 / IP56 with display

ТМ01-12 150°С (302°F), 40МPа (5800psi), 2 pumps intake ±2аtм (±0.2 MPa, ±30 psi), 2 ESM oil temperature ±2°С (±3.6°F), Ambient temperature ±2°С (±3.6°F), stainless steel/ carbon steel; surface unit IP20 without display / IP56 with display

ТМ01-15 150°С (302°F), 40 MPa (5800psi), Рump intake ±2atm (±0.2 MPa, ±30 psi), Рump discharge ±2atm (±0.2 MPa, ±30 psi), ESM oil temperature ±2°С (±3.6°F), Discharge temperature ±2°С (±3.6°F), Ambient temperature ±2°С (±3.6°F), stainless steel/ carbon steel. / surface unit IP20 without display / IP56 with display

ТМ01-16 With Thru shaft: 150°С (302°F), 40МPa (5800psi), Рump intake ±2atm (±0.2 MPa, ±30 psi), ESM oil temperature ±2°С (±3.6°F), Ambient temperature ±2°С (±3.6°F), stainless steel/ carbon steel. /; surface unit IP56 with display

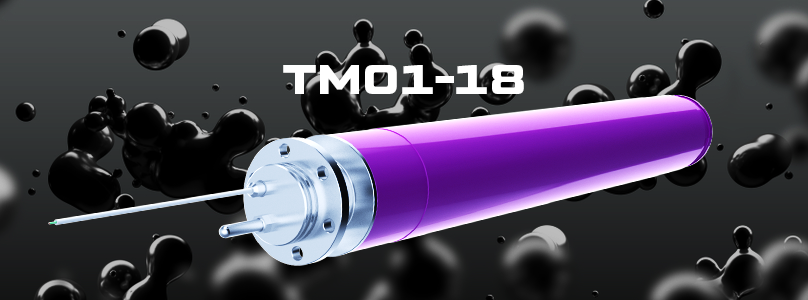

ТМ01-18 175°С (347°F), 40MPa (5800psi), Рump intake ±1аtм (±0.1 MPa, ±15 psi), ESM oil temperature ±1°С (±1.8°F), Ambient temperature ±1°С (±1.8°F), stainless steel/ carbon steel. / surface unit IP20 without display / IP56 with display; power supply unit (cooler) IP56

ТМ01-20 150°С (302°F), 40МPa (5800psi), Pump intake ±0,5аtм (±0.05 MPa, 6psi), ESM oil temperature ±1°С (±1.8°F), Ambient temperature ±1°С (±1.8°F), stainless steel/ carbon steel. / surface unit IP20 without display / IP56 with display

ТМ01-25 150°С (302°F), 40МPa (5800psi), Pump intake ±0.5аtм (±0.05 MPa, 6psi), Pump discharge ±0.5 (±0.05 MPa, 6psi), ESM oil temperature ±1°С (±1.8°F), Ambient temperature ±1°С (±1.8°F), stainless steel/ carbon steel. / surface unit IP20 without display / IP56 with display

Downhole Measuring System Triol TM01 is a must-have for your efficient oil production!
