Triol AK06 Flexible Cabinet
Place an order
Distinctive benefits
20°С … +60°С
Operating temperature range
NEMA4
Enclosure
Built-in
Output filter provides THDi and THDu output <5%
Cabinets
Designed to integrate third-party variable frequency drives
About product
Versatile solution with NEMA4

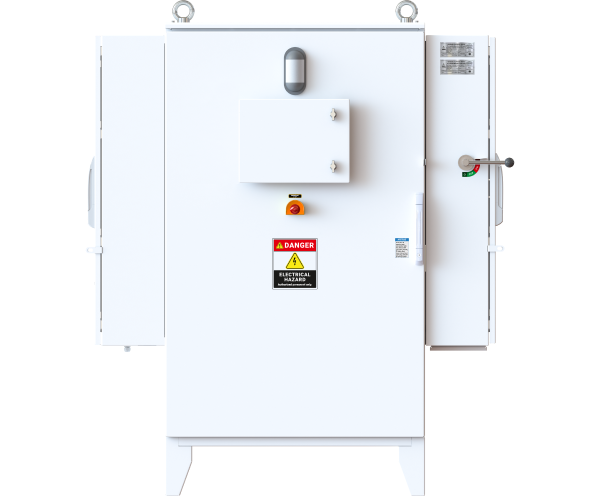

Variable Speed Drive AK06 line FC is a versatile NEMA4 enclosure solution which complies with NEMA 250-2014 standard. Enclosures of FC line are specially designed to have the possibility to integrate third-party variable speed drives into their cabinet.
Output filter, highly protected enclosure
FC line cabinet includes an input switching and protection equipment, an output filter, and an air-to-air heat exchanger for use in submersible and surface pumps for oil-producing and other industries. Input harmonic filter can be integrated into the cabinet of FC line. The highly protected enclosure and built-in power bay locking system ensure the reliable and safe use of the cabinet in outdoor conditions.
Specifications
| Parameter | Value |
|---|---|
| Power supply, V | 3х380 ±15% / 3х480 (-15 % …+10 %) |
| Input frequency, Hz | 50±1 Hz and/or 60±1 Hz |
| Rated output current, A | 100 – 675 |
| Overcurrent characteristics | 120% of rated value within 60 sec |
| Change of frequency task increment, Hz | 0,1 |
| Level of distortion in the output current THDi,% | <5% |
| Level of distortion in the output voltage THDi,% | <5% |
| Level of distortion of current in the input network
*for the cabinets with built-in passive filter |
<5% in the load range from 70% to 100% |
| DC bus choke | Built-in |
| Input passive filter | Option, Built-in |
| Sine filter | Built-in |
| PWM frequency, kHz | >=2,5 |
| HMI | Process controller integration as per customer request |
| Local alarm | Optional |
| Operator Control Voltage | Optional: specified upon order |
| Enclosure protection | NEMA4 |
| Material of enclosure | Carbon steel |
| Operating temperature | -20°С … +55°С (with decrease of output power) |
| Relative humidity | 95 % |
| Cooling type | Air forced |
