Triol AK06 Right Drive

Place an order
Triol AK06 Line RD

Distinctive benefits

20°С … +60°С

Operating temperature range

NEMA3R

Enclosure

6/12 pulse drive

Number of pulses

20°С … +60°С

Operating temperature range

About product

Specialized control algorithms

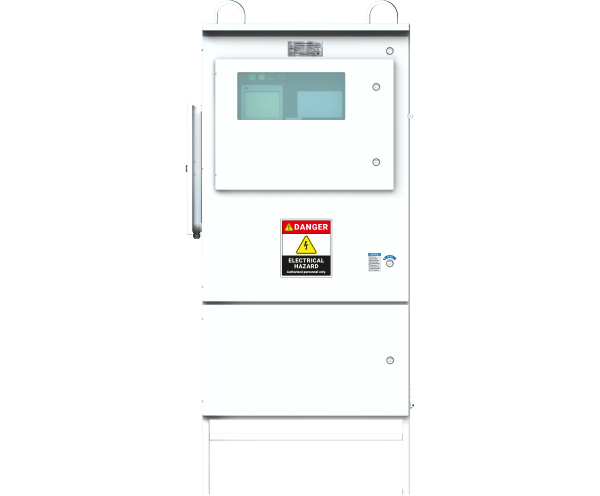

Variable Speed Drive AK06 line RD is a reliable and cost-effective solution to control submersible units of electric submersible pumps and surface pumping installations for operating conditions from -20 ° C to + 50 ° C with NEMA3R enclosure. A wide range of specialized control algorithms provides an integrated solution for manufacturing tasks.

Wide power range

The rated output current of the VSD varies from 100 A to 3000 A, the supply voltage is 380 V, 50 Hz and/or 480 V 60 Hz (versions with supply voltage up to 550 V are available).

Specifications

Parameter Value
Power supply, V
  • 3×380 ± 15% / 3×480 (-15% … + 10%)
  • 50% continuously with reduced output power
  • 65% up to 500 ms (with a decrease of output power)
Input Frequency, Hz 50/60 (-5 %…+5 %)
Rated output current, A 100 – 3000
Overcurrent characteristics 120% of rated value for 60 sec
Change of frequency task increment 0,1 Hz
Efficiency 96 %
DC bus choke Built-in
Sine filter Built-in
Capacitor unit (for voltage sags) Option, outdoor




Braking IGBT Option, built-in
Braking resistor Option, outdoor
Electric meter Option, built-in
GPRS router Option, built-in
PID mode YES
HMI
  • UMKA03 controller with a 7-inch monochrome screen, push-button control
  • UMKA07 controller with LCD-TFT 7 inch display, push-button control (touch screen optional)
  • Integration of third-party controller
Output frequency
  • 1.5 – 80 Hz, in induction motor control mode
  • 1.5 – 200 Hz, in permanent magnet motor control mode
  • 1.5 – 600 Hz, in high-speed PMM control mode



PWM frequency up to 8 kHz depending on VSD type
Speed maintenance accuracy (static)  +/- 10% of rated speed in open-loop system
Control type
  • vector control in an open-loop system without speed feedback (for PMM)
  • scalar control: based on the characteristic voltage / frequency U / F (for induction motors)



Light alarm “Work”, “Waiting”, “Stop”
Operator Control Voltage Option:


  • 10 V DC, +/- 2% current not more than 30 mA
  • 24 V, 300 mA
  • 110/220 V, 10A for connecting of third-party consumers
Number of AI 2 by default, optional extension +8
AI type programmable 4..20 mA, 0..5 mA, 0..10 V (frequency reference / multifunction analog input)
Number of DIN 2 by default, optional extension +4 or more
DIN type 24 V, input resistance: 4 kOhm
Number of analog outputs Option, 4 or more programmable 4..20 mA, 0..5 mA, 0..10 V
Number of Relay Outputs Option, 8
Acceleration and deceleration rates
  • linear, from 0.1 Hz/s
  • program mode with adjustable time of reaching given frequency
Insulation Galvanic isolation between power and user circuits
Insulation resistance > 5 MOhm
Protection type
  • Overcurrent protection
  • Power switched temperature (IGBT)
  • Max. and min. voltage in the DC link
Communication port Modbus
Physical interface
  • 2-wire RS-485/232 for Modbus by default
  • Ethernet (optional) – for communication with ACS /automated control system/
  • wire RS-485/232 for Modbus – for communication with a surface downhole measuring system
Frame Transmission Modbus RTU
up to 115200 bps
Enclosure protection NEMA3R
Material of enclosure carbon steel, stainless steel
Operating temperature -20°С … +60°С (-60°С optional)
Relative humidity 95 %
Cooling type Air forced
