TRIOL AT24 Strong Drive
Place an orderDistinctive benefits
-40 ºC…+50 ºC
Operating temperature
IP21 \ IP54
Enclosure
Removable graphic terminal
Operation without control terminal
Input circuit breaker and DC link
Built-in
Control system
Vector sensor (close-loop) and sensorless (open-loop) control
Encoders
3 different types of encoders supported
Motor parameters
Auto-tuning of both with and without motor rotation
Multi-motor systems
Master-Slave drive application
Remote control terminal
Transient graphs
Macros
Quick start and the ability to exchange settings between VFDs
About product
Premium solution for powerful motors

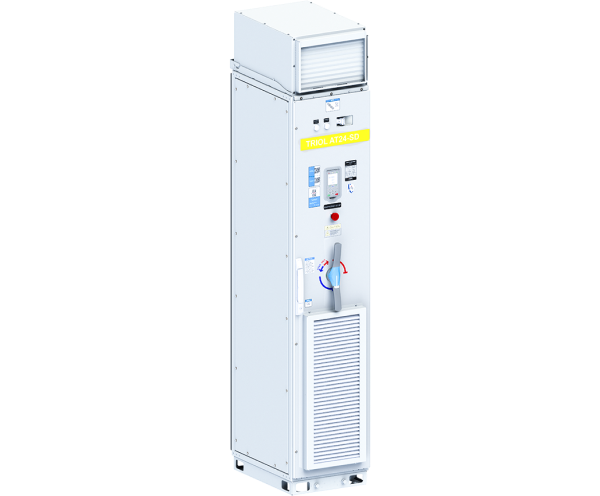

Variable Frequency Drive Triol AT24 line SD is a premium solution for powerful motors. Floor mounting for easy installation. Triol AT24 VFD line SD is a low-width and high cabinet with module design and a wide range of built-in options. Removable power cell of high-power Triol AT24 VFD line SD allows performing repair work without dismantling the entire cabinet. A convenient and elaborate system for lifting power cells allows easy installation. Easily removable air filters allow performing periodic maintenance in minutes without stopping and disconnecting supply voltage from Triol AT24 VFD line SD. IP54 enclosure is optional.
Wide range of application
The Master-Slave drive application is available for Triol AT24 VFD line SD for operation in multi-motor systems. For powers 500..800 kW (680…1080 HP) at 380/480 V and 1000..1600 kW (1360…2175 HP) at 690 V, a parallel connection of two Triol AT24 VFD line SD is used. Triol AT24 VFD line SD is optionally equipped with a removable wireless control graphic terminal with induction supply. It is possible to control several VFDs. AT24 SD is designed to control pumps, HVAC systems, exhausters, compressors, conveyors, crushers, mixers, grinders, mills, rolling mills, drilling rigs.
Various additional units
Setting up and controlling the AT24 SD is easy due to the use of: Wi-Fi adapter with step-by-step Triol Wizard via smartphone, service software Triol Drive for PC, remote control terminal with transient graphs. Various additional units for VFD control system extend abilities of process control.
Specifications
Input | |
Input voltage, V | 3х380 / 3х480/ 3x690 (-15 % ...+10 %) |
Input frequency, Hz | 50 / 60 (-5 %...+5 %) |
Output | |
Output current, A | 176 ...1600 |
Output frequency, Hz | 0...400 |
Frequency resolution, Hz | 0.1 |
Acceleration / deceleration time, s | 1 ...4000 |
Overcurrent characteristics | 150 % of rated value for 60 sec |
Motor control | |
Control methods | V/f (volts-per-hertz) (5 reference point) sensorless vector control (open-loop) sensor vector control (close-loop) |
PWM frequency, kHz | 2...10 |
Speed range | 1:100 in open-loop system 1:1000 in closed-loop system |
Speed accuracy (static) | ±10% of motor nominal slip in open-loop system ±0.1 % of rated speed in close-loop system |
Torque accuracy | ±10% in open-loop system ± 5 % in close-loop system |
Braking | By frequency Coasting |
Acceleration / deceleration types | S-curve, linear (3 reference points) |
Interface | |
Terminal | Removable graphic terminal with induction power |
Light alarm | "Ready"; "Run";" Fault", "Control channel" |
Push buttons | "Start"; "Stop"; "Program", navigation keys |
Control signals | |
Customer supply | 10 V DC, up to 30 mA 24 V DC, up to 150 mA |
Number of discrete inputs | 8 |
Discrete inputs | 1 Dl Emergency Stop 8 Dl programmable |
Discrete inputs type | 24 V |
Sensor input | 1 PTC sensor (switching at a resistance of 3 kOhm / 1.8) |
Number of relay outputs | 4 |
Relay outputs type | 250 V, 3.5 A |
Number of analog inputs | 2 |
Analog inputs | Programmable 0...10 V / 0...5 mA / 4...20 mA |
Number of analog outputs | 1 |
Analog outputs | Programmable 0...10 V / 0...5 mA / 4...20 mA |
Communication | |
Physical Interface | 2 wire RS-485 for Modbus |
Communication protocols | Modbus RTU |
Frame transmission | 115200 bps by default 1200 -250000 bps |
Data format | 8 bits, 1 stop bit, no parity |
Number of addresses | 1...255 for Modbus |
Access | Slave |
Protection | |
Supply protections | Phase loss, phase sequence fault |
Motor protections |
Overcurrent Overload Underload Phase loss Current unbalance Encoder open circuit Brake resistor open circuit |
VFD protections | Overload, Overheating, DC-link undervoltage, DC-link overvoltage, Power switch failure |
Insulation | Galvanic isolation between power and user circuits |
Configuration | |
Circuit breaker | Built-in |
DC-link | Built-in |
Input line choke | Option, built-in, set instead DC-link |
Braking IGBT-chopper | Option, built-in |
Input EMC filter (C2) | Option, built-in |
Output dV/dt filter |
380/480 V Up to 400 kW: option, built-in From 500 kW: built-in |
690 V Up to 800 kW: option, built-in From 1000 kW: built-in |
|
Optional equipment | |
Input passive harmonic filter | Option, outdoor, by request |
Braking resistors | Option, outdoor, by request |
Output sine filter | Option, outdoor, by request |
Mechanism for lifting power cells | Option, outdoor, by request |
Operating conditions | |
Operating conditions | Indoor, no caustic and volatile air, no dust |
Operating temperature | -40...+50 °C (-40...+122 F) |
Storage temperature | -50...+60 °C (-58...+140 F) |
Relative humidity, % | from 5 to 90 non condensing |
Altitude, m | up to 1000 m - rated power above 1000 m - with reduced power |
Construction | |
Protection degree of Enclosure | IP21 or IP54 |
Cabinet material | Steel |
Cooling | Forced air |
Noise level, @ 1 m, dB(A) | <75 |
Installation | Floor mounting |
Maintenance | One-side |
Functions
- Start / stop / reverse of motor with set acceleration and deceleration rates
- Motor speed and torque control
- Auto-tuning of motor parameters (with rotation and without)
- PID-controller
- 2-wire control
- 3-wire control
- Automatic restart
- “Catch on the fly” mode
- Motor group control
- Operation by calendar
- Energy and electricity meters
- Encoders supported – incremental, absolute, sine/cosine
- Accelerated passing of resonant frequencies (3 ranges)
- Recording the last 32 reasons of failures
