TRIOL TM01-05

Place an order

Distinctive benefits

Investment Savings

Cost savings during commissioning and well operation

Increased production through quality and timely solutions

Increased service life of submersible equipment

Ensuring the safety of personnel at wells site

About product

Sustainable and optimal solution

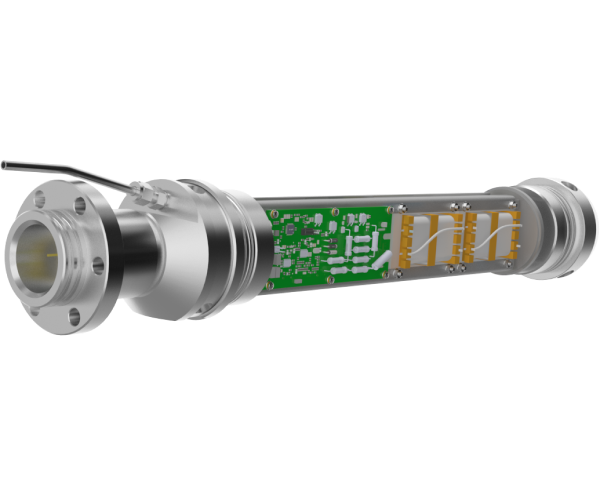

Downhole Measuring System Triol TM01-05 is a sustainable and optimal solution for systems with a need to monitor pressure and temperature at a pump discharge; to collect, process, display and quickly transfer motor actual parameters, well parameters, at fluid temperature up to 150°C (302°F), fluid temperature at pump discharge up to 250°C (482°F) and equipment suspension zone pressure up to 40 MPa (5800psi).

Distinctive benefits of Downhole Measuring System Triol TM01–05:

Investment Savings, Cost savings during commissioning and well operation, Increased production through quality and timely solutions, Increased service life of submersible equipment, Ensuring the safety of personnel at wells site.

Displaying and processing of

  • pump discharge pressure
  • pump intake pressure
  • ambient temperature
  • submersible motor oil temperature or the temperature of the motor stator winding
  • ambient temperature
  • ESM vibration acceleration in the X, Y and Z axis
  • insulation resistance in the circuit “Step-up transformer – submersible cable – ESM”

Specifications

Key parameters

Ambient temperature
  • Up to + 125 °С (257 °F)  – constantly
  • Up to +150 °С (302°F) – up to 6 months totally
ESM oil temperature / ESM stator winding From 0 to +200/250 °С (from +32 to +392/482 °F) ±2°С, (±3,6°F), resolution 0,01°С (0,1°F)
Pump intake pressure

0-40 MPa (0-5800 psi) ±0,2 MPa (±30 psi),

resolution 0,001 MPa (0,1 psi)

Pump discharge pressure

0-40 MPa (0-5800 psi) ±0,2 MPa (±30 psi),

resolution 0,001 MPa (0,1 psi)

Axis vibration x, y, z 0-30 m/s² (±5 %), resolution 0,1 m/s² (0.001 g)
Insulation resistance "Step-up transformer – ESM power line" 0-1000 kΩ (±10 %), resolution 1 kΩ /
1000-10000 kΩ ±10 %, resolution 1 kΩ
Operation mode (duration) Extended
Data update time 30 s
Controller communication protocol RS-232, RS-485 Modbus RTU
Communication protocol Step-up transformer / Submersible unit Closed
Exchange protocol Surface unit / VSD Triol / Transfer
Data transfer speed 19200 8N1



Additional Options

Options

Digital Module TM01 16 digital inputs / 8 digital outputs
Analog Module TM01 8 digital outputs
Adam TM01 Adapter RS485/422/232 Ethernet
Triol High-Voltage Choke IP20 230х460х142mm, 24 kg, IP20, from -40 to +60°С (from -40 °F to +140 °F)
Triol High-Voltage Choke IP56 230х460х142mm, 24 kg, IP20, from -40 to +60°С (from -40 °F to +140 °F)
Triol Test unit TM01 454х324х171mm, 11 kg, IP67, from -40 to +55°С (from -40 °F to +131 °F), 4h
Triol Test unit pressure TM01 454х324х171mm, 9 kg, IP67, from -20 to +60°С (from -4 °F to +140 °F)
SCP Modem Modem type depends on the region of implementation
